Designed to deliver precision, control, and adaptability without compromise.

Main

• Precision press-fit ball bearings with Seegers
• CNC machined aluminum main structure from a single block of aluminum
• Compact design pushing the boundaries of compactness and weight
• Optimized FEM design for a cutting edge flex-free structure
• Custom brackets with adjustable main pedal body angle in 5° increments
• Redesigned mainspring with improved geometry
• Easier to mount brackets both in Stainless steel

Throttle

• Adjustable pedal throw by a dedicated knob on the main shaft
• Easy to reach spring preload adjustment
• Precision machined main shaft with high wear resistance plating
• Tolerance machined self-lubricating nylon sleeve for the smoothest operation
• 16 bit resolution hall sensor with improved readings
• USB-C connector for the main control electronics

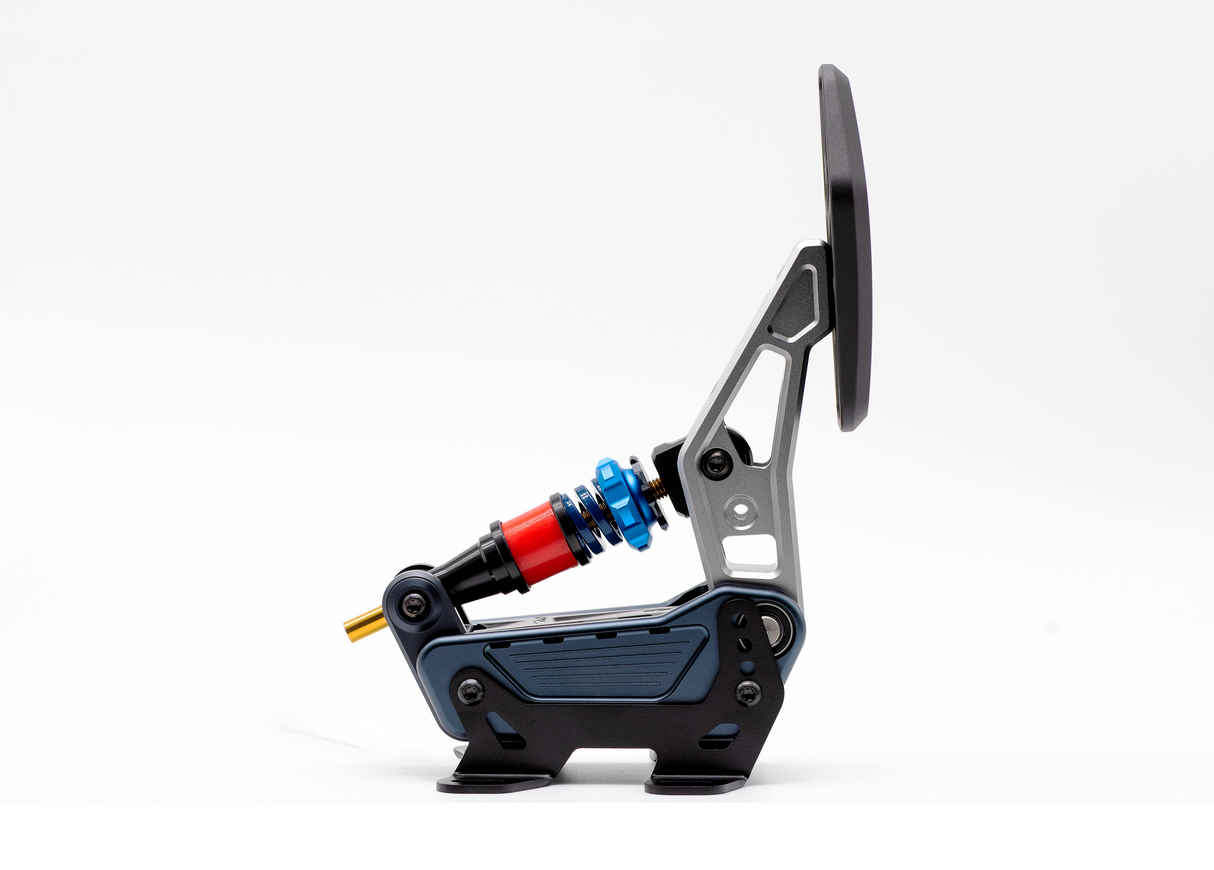

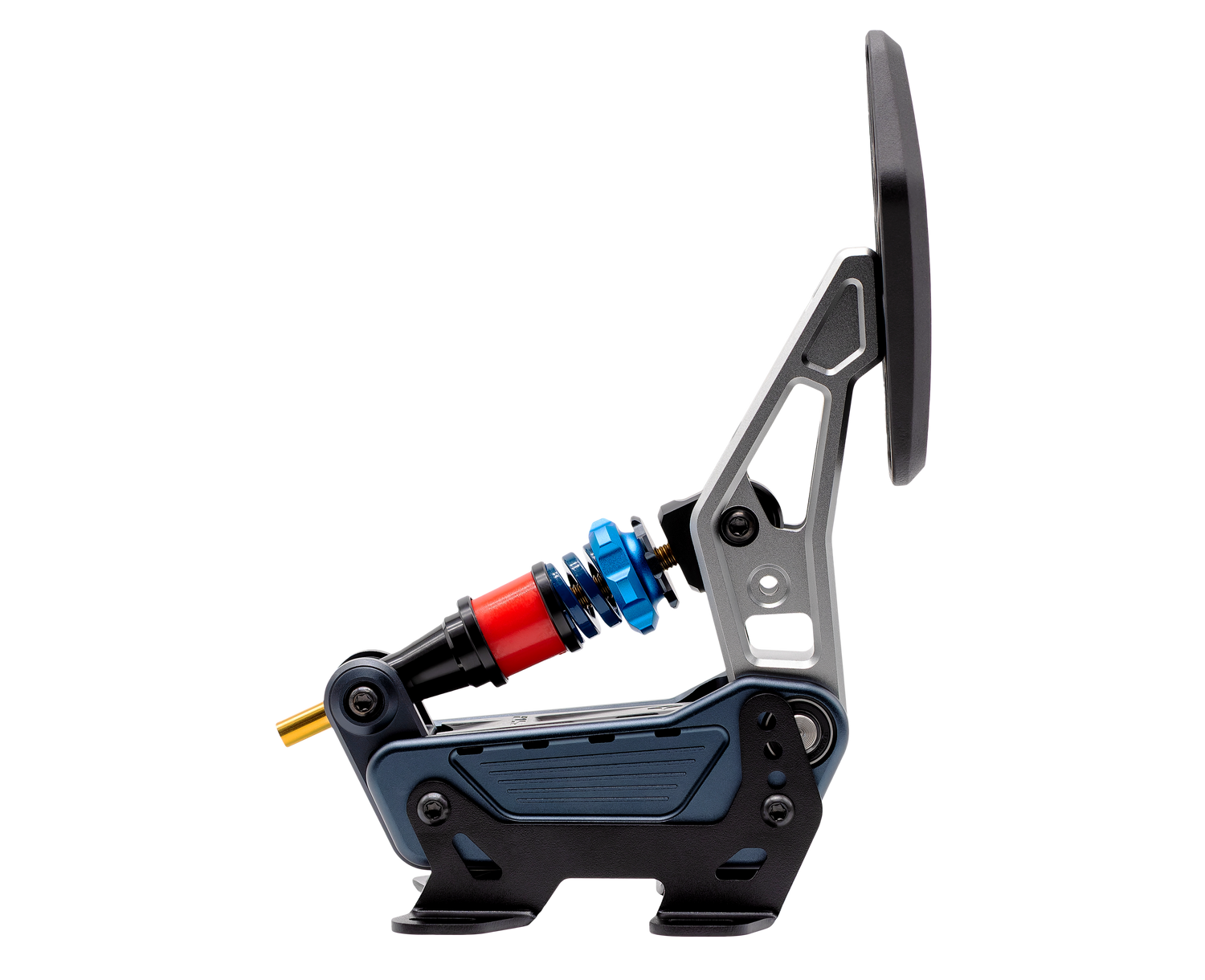

Brake

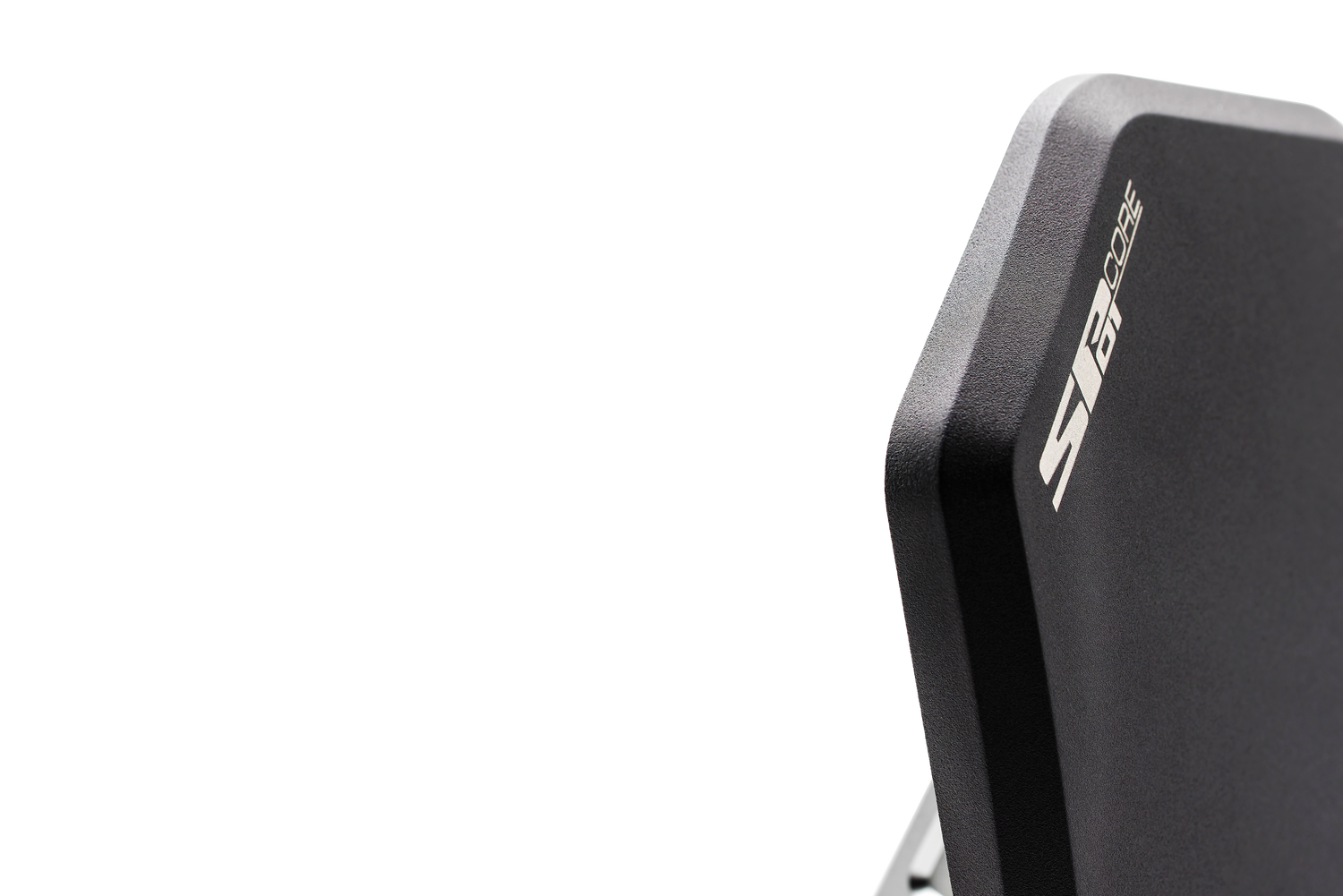

• Custom lightweight die-cast pad faceplate with textured grip
• Fine-tuning spring preload option on the main pedal, and preload ring on the compression elements with counter knob
• Precision machined main shaft with high wear resistance plating
• Several springs and rubber dampers compression elements available
• Self-centering springs and dampers washers
• 200kg precision load cell with improved directly applied force cinematic
• 16-bit resolution
