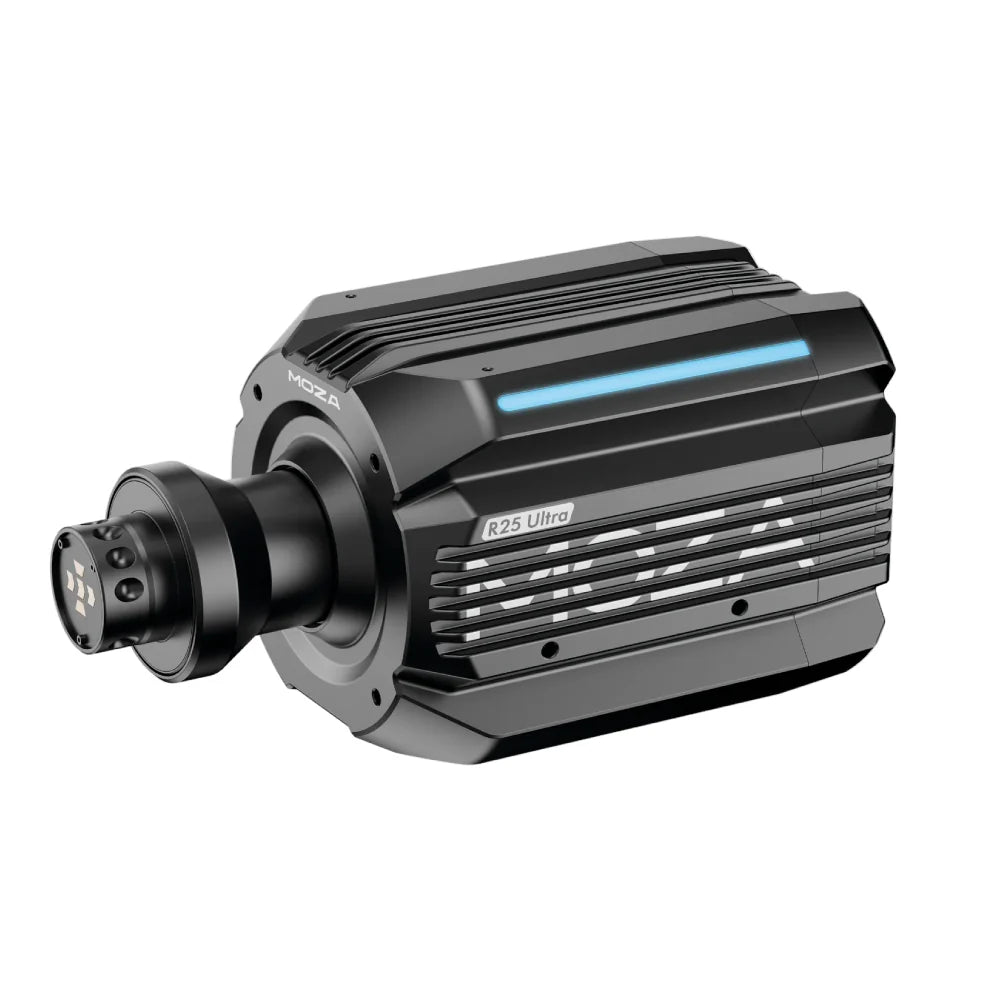

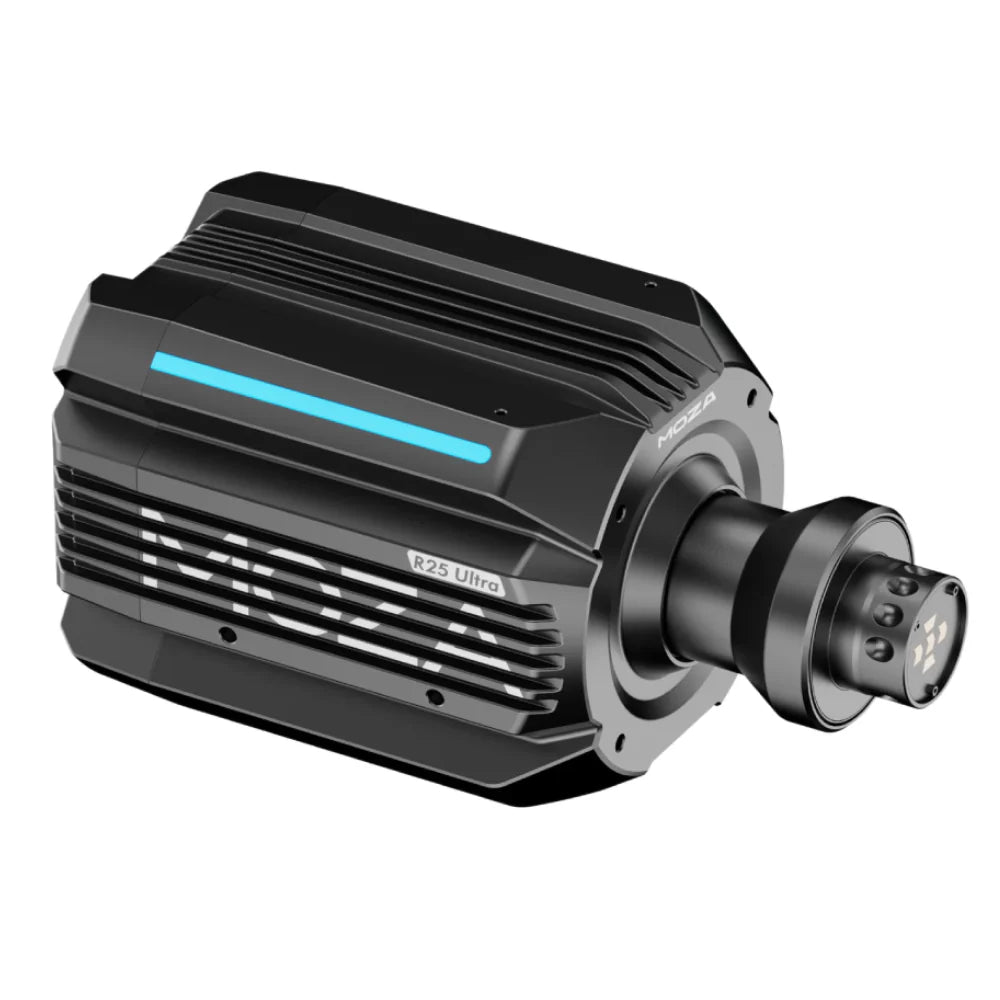

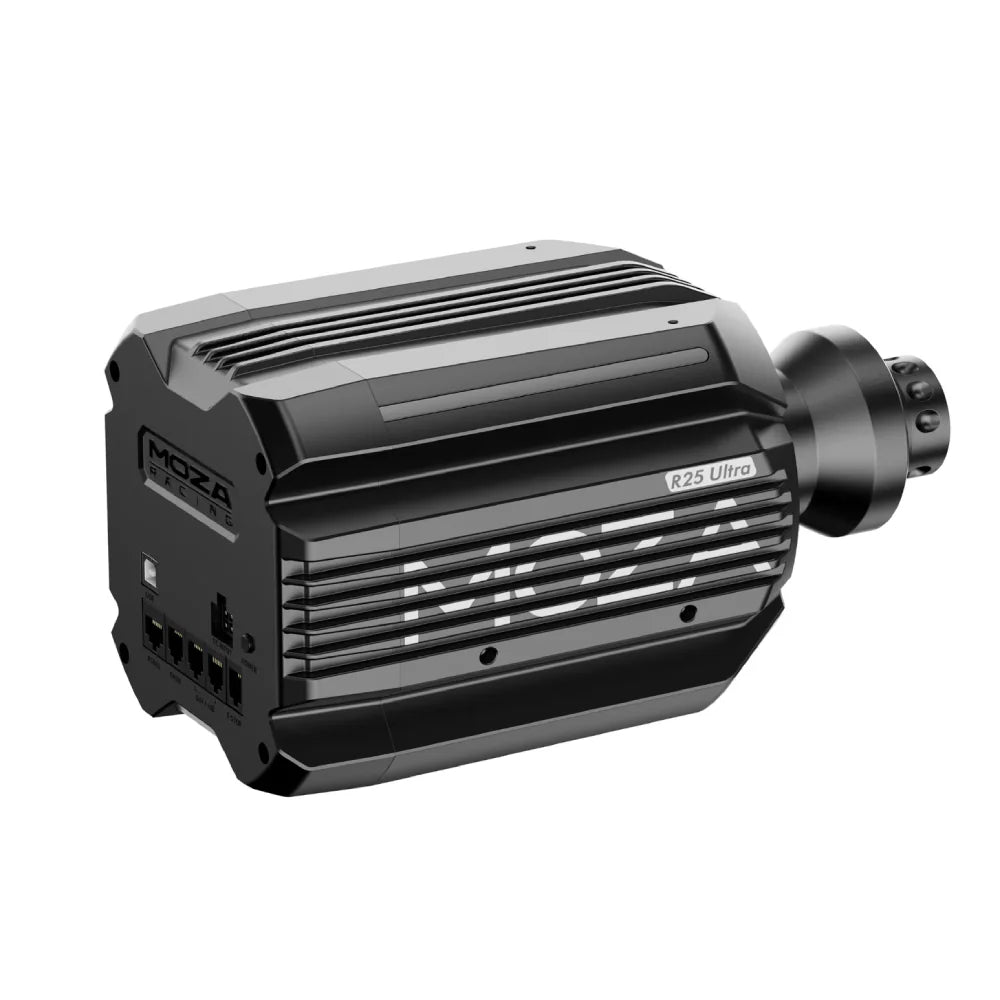

MOZA Racing R25 Ultra Wheelbase 25NM

Unleash True Racing Power
With sustained 25Nm torque, a zero-cogging motor, and MOZA’s latest force feedback algorithm, the R25 Ultra delivers lifelike immersion and razor-sharp control for every race.

Real-time Torque Sensing
Equipped with a true torque sensor, the R25 achieves 0.1% sampling accuracy and a 2 kHz response rate, capturing steering input with unmatched precision for sharper handling and control.

All-new Zero-Cogging Flat-wire Motor
MOZA’s custom flat-wire motor offers 26% higher torque density than similarly sized competitors. With true zero cogging, it ensures ultra-smooth rotation and reproduces every detail—from subtle inputs to aggressive cornering.

21-bit Magnetic Encoder Precision
A high-resolution 21-bit magnetic encoder (2,097,152 PPR) captures over two million points of data, delivering stunning accuracy and preserving every nuance of the driving surface.

iRacing 360Hz Mode
Experience ultra-responsive force feedback with iRacing’s 360Hz update. Enhanced detail and precision deliver deeper immersion and sharper control in every race.

Industry-leading Torque Response & New FFB Algorithm
The R25 integrates cutting-edge hardware with MOZA’s latest Force Feedback Algorithm, producing industry-leading torque response, enhanced detail clarity, and precise tuning for every driving style.

Versatile Mounting Options
Supporting bottom, front, and side mounting, the R25 adapts easily to a wide range of rigs and cockpit layouts for maximum installation flexibility.

• Platform: PC
• Drive System: Direct Drive
• Encoder Type: 21-bit Magnetic Encoder
• Encoder Resolution: 2,097,152 PPR
• Maximum Torque: 25 N·m
• Rated Power: 378W
• Input Voltage: 110V~220V AC → 36V DC
• Housing Material: Aluminum Alloy
• Rear Cover Material: Plastic
• Coupler Material: Aluminum Alloy
• RGB Light Strips: 2
• Mobile App Functions: Supported
• Quick Release: Supported
• USB Refresh Rate: 1000Hz
• Ports: Power, PC, Pedals, Dashboard, Shifter, Handbrake, Emergency Stop Switch
• Accessories: Power adapter, data cable, bolt kit, user manual, warranty card
• Mounting Options: Front, side, and bottom mounting supported (optional adjustable bracket available)
• Emergency Stop Switch: Optional
• Dimensions: 248.8 × 140 × 135 mm
• Weight: 9.1 kg
